Alle Maschinen/packaging-machinery/strapping-machines/M-51825
Umreifungspresse
Mosca
GM MOSCA-KPK-131-26
Arico-ID
Steuerung
Baujahr
M-51825
51688 , Wipperfürth , DE
-
Angaben zur Maschine:
Standort der Maschine:
Angaben zum Inserat:
Anbieter
pulspack e k
Registriert seit: 2021
Anzahl der Online-Inserate: 15
Telefon
02051 8037990
Mobil
02051 8037990
Beschreibung:

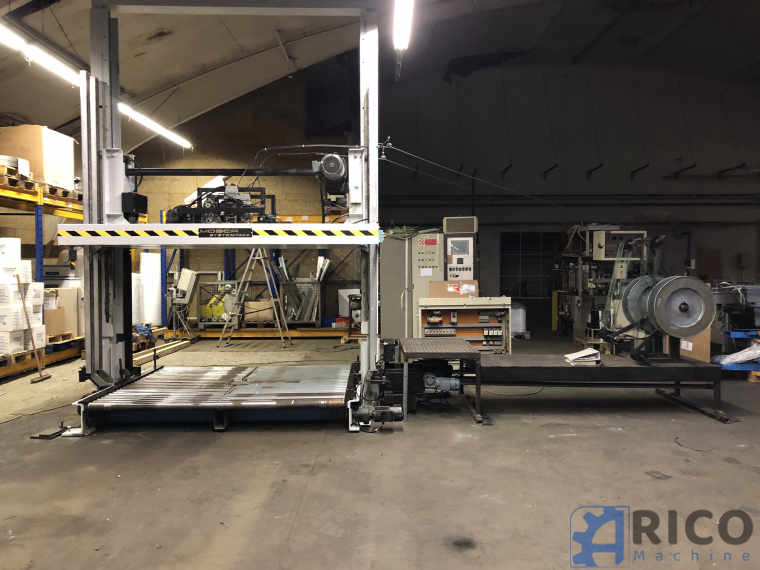

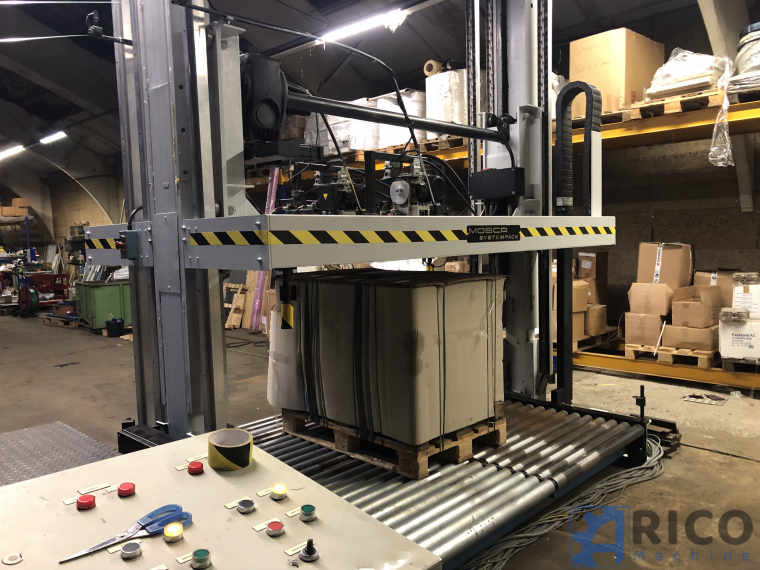

Automatic pallet packing press (built: 1995)
with lifting turnstile mounted in the roller conveyor of the packing press
for Euro and industrial pallets, pallet skids in running direction
*** Pallet dimensions:
Length: min 1.000mm / max.1.600mm
Width: min 800mm / max. 1.000mm
Height: 145mm
*** Dimension including pallet:
Length: min. 800 / max. 1.600mm
Width: min. 800mm / max. 1.400mm
Height: min. 500mm / max. 2.700mm
*** Cross strapping can contain the following pallets:
Length: min. 1,000mm / max. 1.200mm
Width: min. 800mm / max. 1.200mm
*** Press Pack Dimensions:
Passage height max. 2.900mm
Passage width max. 2.600mm
Length of the printing plate: 1,600mm
Pressing force: up to max. 50,000N selectable via potentiometer
Press speed: 75mm / sec
*** Performance of the pallet packing press:
with 2-fold strapping: max. 120 pallets / hour
with cross strapping: max. 75 pallets / hour
Number of position programs: 10
Strapping: PET
Dimensions / width: 12.5mm
Included:

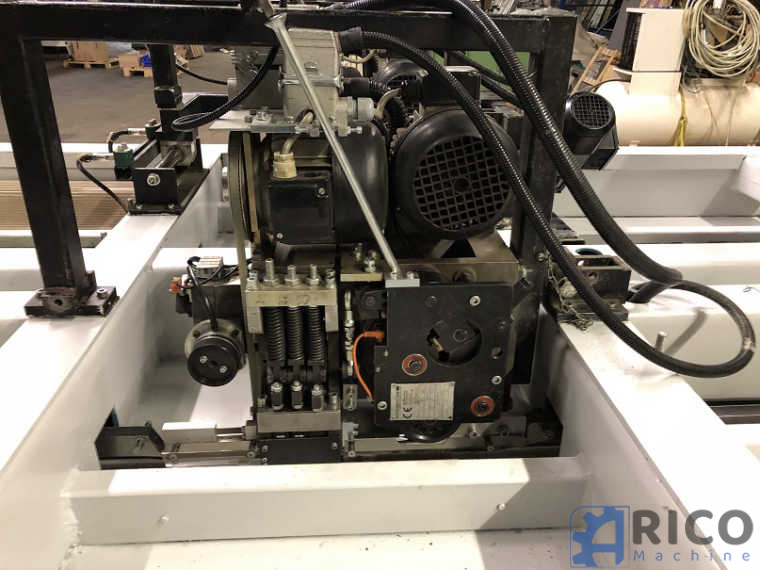

*** 3. strapping head
*** Test bench for strapping head
*** Extensive spare part package (e.g., lance, motor, small parts, etc.)
Used machine: to the exclusion of any warranty
Availability: immediately (subject to prior sale)
Delivery: EXW Wipperfürth (loading carried out by seller, plus freight charges)
Payment: 100% prepayment on order
Control: Siemens S 5
