Sliding/Fixed Headstock Automatic Lathe

TRAUB

TNL 18 CNC

M-237415
Arico-ID

TRAUB SYSTEM TX 8 I-S
Steuerung

2014
Baujahr

Arico-ID
M-237415

Adresse
41710 , Utrera , ES

Preis
-

Angaben zur Maschine:

Maschinentyp:

Sliding/Fixed Headstock Automatic Lathe

Hersteller:

TRAUB

Modell:

TNL 18 CNC

Baujahr:

2014

Steuerung:

TRAUB SYSTEM TX 8 I-S

Zustand:

gebraucht-sehr gut

Arico-ID:

M-237415

Preis:

-

Anrufen

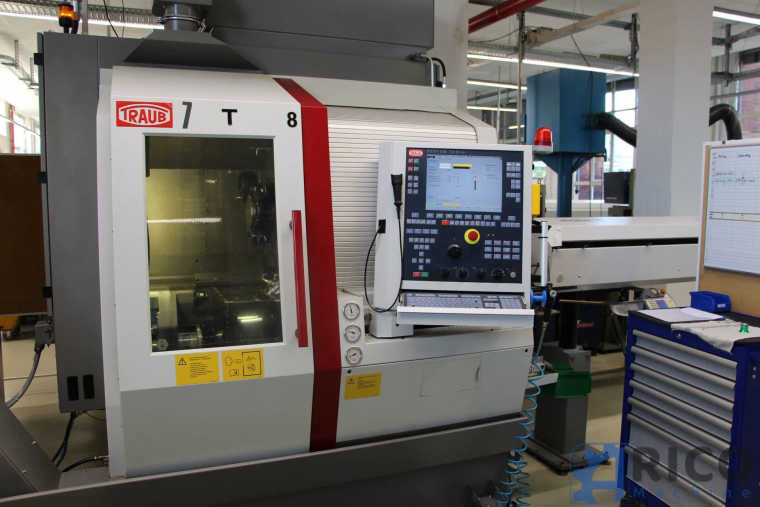

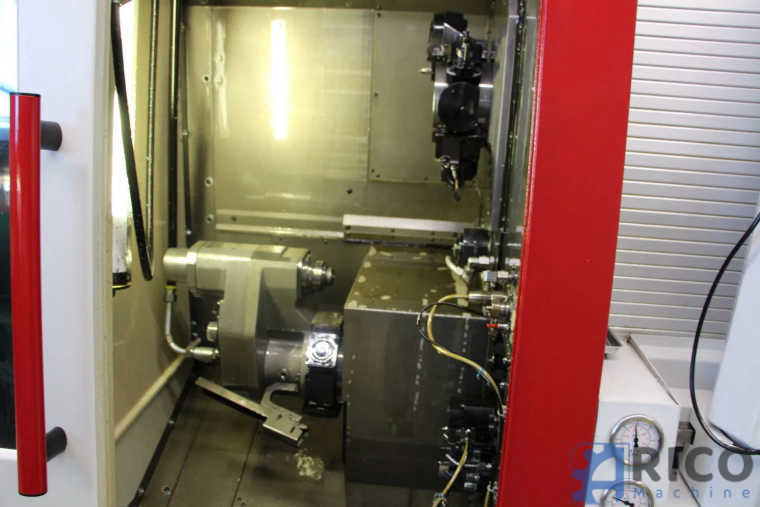

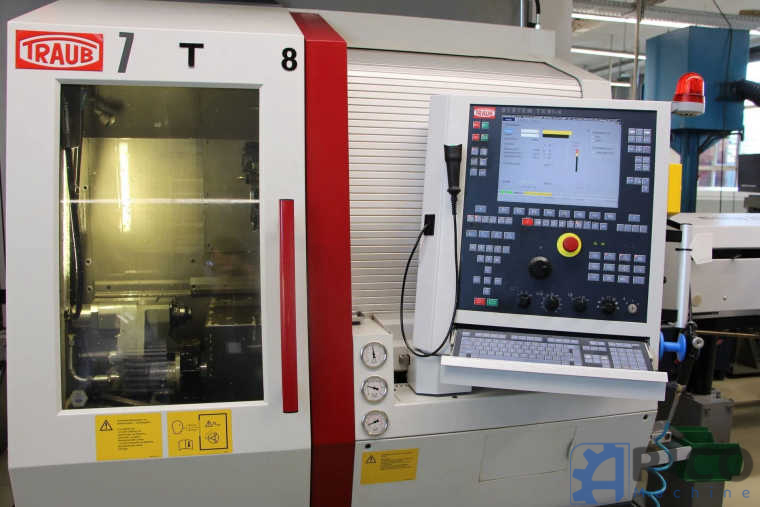

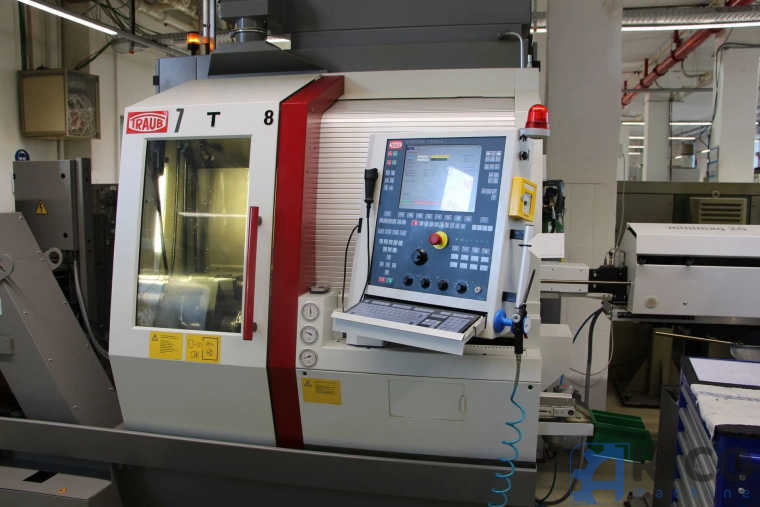

Sliding/Fixed Headstock Automatic Lathe TRAUB TNL 18 CNC images - Arico Machine

Standort der Maschine:

Adresse:

Utrera, ES

Postleitzahl:

41710

Angaben zum Inserat:

Arico-ID:

M-237415

Anbieter

CUT-Milling Solutions SL

Registriert seit: 2022

Anzahl der Online-Inserate: 15

Telefon

+34954732260

Mobil

+34954732260

CUT-Milling Solutions SL Ur Las Aguardienteras Centro 41710 Utrera Sevilla, Spain

∨ ∧

Beschreibung:

Maschinentyp:

Sliding/Fixed Headstock Automatic Lathe

Hersteller:

TRAUB

Modell:

TNL 18 CNC

Baujahr:

2014

Zustand:

gebraucht-sehr gut

Steuerung:

TRAUB SYSTEM TX 8 I-S

Frei Verladen:

Ja

Dokument:

Ja

Weitere Informationen:

nominal power 35 kW, bar diameter 12.7 mm, turning length/headstock stroke with fixed guide bush max. 130 mm, drive power 2.5 kW, speed range 0 to 12000 rpm, C-axis 0 to 100 rpm, working range turret 1: slide travel X 1 35 mm, Y 1 37.5 mm, rapid traverse X 1 and Y 1 15 m/min, 6 tool places, turret 2: slide travel X 2 35 mm, Z 2 50 mm, rapid traverse X 2 and Z 2 15 m/min, 6 tool holders, turning tool cross section 12 x 12 mm, working range counter spindle/front attachment bar diameter max. 12.7 mm, longitudinal stroke max. (Z 3, Z 4/X 3): 1139/222 mm, rapid traverse Z 3, Z 4, X 3: 30 m/min, drive line 2.5 kW, speed range 12000 rpm, working range rear end attachment (dragged/fixed) stroke Z dragged with working spindle: 80 mm, diameter of the tool holder 20 mm, 3 tool places, working range rear side apparatus X 4 stroke X 4 39 mm, rapid traverse 15 m/min, path speed 7.5 m/min, feed force 2000 N, 4 tool places, spindle height above floor 1050 mm, total connected load 16 kW, with TRAUB SYSTEM TX 8 I-S CNC control, integrated chip conveyor KABELSCHLEPP SRF 063, year of manufacture 2014, oil mist extraction system, bar loading magazine FMB MINIMAG 20/3200 C, control cabinet.
