Alle Maschinen/woodworking-machinery/cnc-processing-machines/M-236348

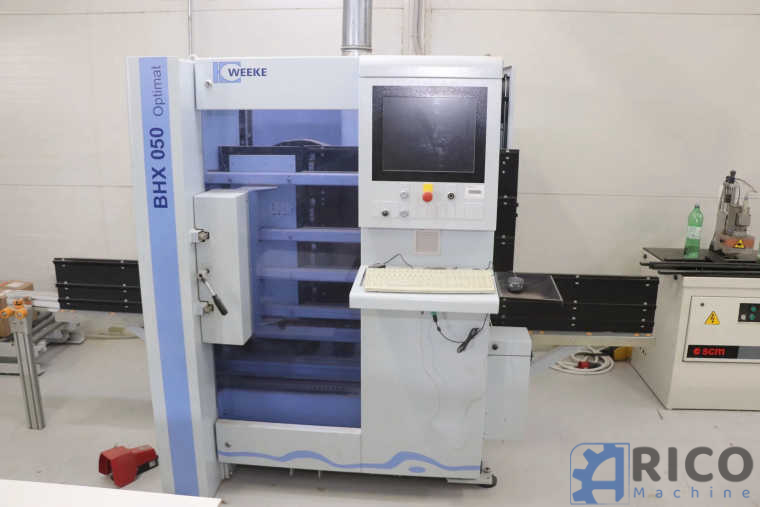

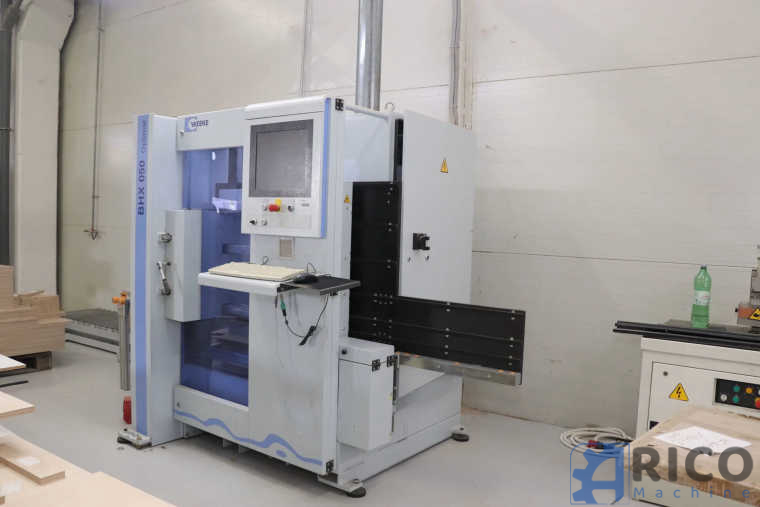

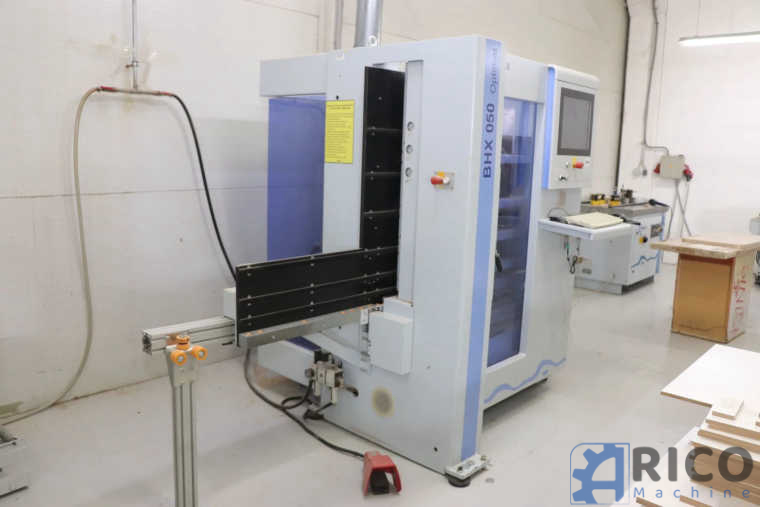

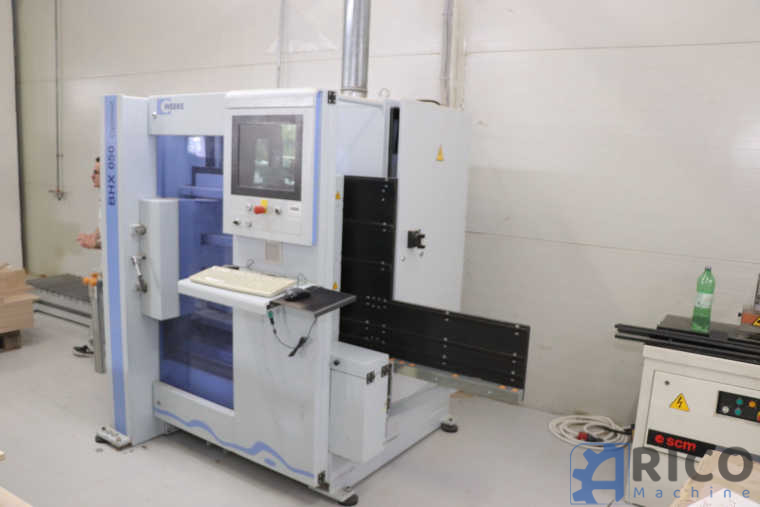

CNC Machining Centre
WEEKE
Optimat BHX 050
M-236348
Arico-ID
Arico-ID
19500 €
Preis
Preis
Arico-ID
M-236348
M-236348
Adresse
41710 , Utrera , ES
41710 , Utrera , ES
Preis
19500 €
19500 €
Angaben zur Maschine:
Maschinentyp:
CNC Machining Centre
Hersteller:
WEEKE
Modell:
Optimat BHX 050
Zustand:
gebraucht-sehr gut
Arico-ID:
M-236348
Preis:
19500 €
Standort der Maschine:
Adresse:
Urb Las Aguardienteras Centro, Utrera, ES
Postleitzahl:
41710
Angaben zum Inserat:
Arico-ID:
M-236348
Preis:
19500 €
Anbieter
CUT-Milling Solutions SL
Registriert seit: 2022
Anzahl der Online-Inserate: 15
Telefon
+34954732260
Mobil
+34954732260
CUT-Milling Solutions SL Ur Las Aguardienteras Centro 41710 Utrera Sevilla, Spain
Beschreibung:
Maschinentyp:
CNC Machining Centre
Hersteller:
WEEKE
Modell:
Optimat BHX 050
Zustand:
gebraucht-sehr gut
Frei Verladen:
Ja
Dokument:
Ja
Weitere Informationen:
1 stop cylinder to the workpiece positioning
1 workpiece chuck moved in the X-direction over ball screw
Workpiece length: min. 200 mm
max. 3050 mm
Workpiece width: min 70 mm
max. 850 mm
Workpiece thickness: min 12 mm max. 60 mm
With power control PC85 Hardware:
- PLC control with international standard IEC 61131
- Operating system Windows XP(US) embedded
- Intel Core 2 Duo processor
- TFT flat screen 17 inch
- 1 SATA hard drive at least 160GB
– Central USB port
- EtherNet connection 10/100 MBIT RJ45 (without switch)
- Wood WOP 5.0 with: -3D woodDesign;
WoodAssembler; -WoodWOP Mosaic
- WoodType CE SAFETY AND PROTECTION DEVICE DOKU – CONTROL AND TEXTS:
GERMAN CONFIGURATION:
Processing unit in the Y and Z direction ballscrew automatically moved
Drilling V8
Direction of rotation
right/left speed: 2,800 1/min
Drive; 1.8 kw
Spindle type: individually controlled
Slotting saw D=100MM (X-DIRECTION)
The drill head of the basic machine integrated grooving saw
Tool diameter: 100 mm
Milling motor INCL. Frequency, 5KW (ETP)
Milling motor with hydro quick change system and frequency
Speed: 6000-18000 1/min continuously programmable
Max. Power on the tool: up to 5 kW (S1)
Speed expansion drilling HIGH SPEED 7500
Speed: 1500-7500 1/min
Horizontal drilling COPS WITH 4 X- DIRECTION
Horizontal drilling WITH 2 COPS Y - DIRECTION
1 workpiece chuck moved in the X-direction over ball screw
Workpiece length: min. 200 mm
max. 3050 mm
Workpiece width: min 70 mm
max. 850 mm
Workpiece thickness: min 12 mm max. 60 mm
With power control PC85 Hardware:
- PLC control with international standard IEC 61131
- Operating system Windows XP(US) embedded
- Intel Core 2 Duo processor
- TFT flat screen 17 inch
- 1 SATA hard drive at least 160GB
– Central USB port
- EtherNet connection 10/100 MBIT RJ45 (without switch)
- Wood WOP 5.0 with: -3D woodDesign;
WoodAssembler; -WoodWOP Mosaic
- WoodType CE SAFETY AND PROTECTION DEVICE DOKU – CONTROL AND TEXTS:
GERMAN CONFIGURATION:
Processing unit in the Y and Z direction ballscrew automatically moved
Drilling V8
Direction of rotation
right/left speed: 2,800 1/min
Drive; 1.8 kw
Spindle type: individually controlled
Slotting saw D=100MM (X-DIRECTION)
The drill head of the basic machine integrated grooving saw
Tool diameter: 100 mm
Milling motor INCL. Frequency, 5KW (ETP)
Milling motor with hydro quick change system and frequency
Speed: 6000-18000 1/min continuously programmable
Max. Power on the tool: up to 5 kW (S1)
Speed expansion drilling HIGH SPEED 7500
Speed: 1500-7500 1/min
Horizontal drilling COPS WITH 4 X- DIRECTION
Horizontal drilling WITH 2 COPS Y - DIRECTION
